Name: New 🛒 NIBCO T-480-Y-LF 1-1/4 in. Bronze FNPT Spring Check Valve 💯 | Bronze Valves sale shop
SKU: 3918483
Price: 95.99 USD
Availability: InStock

-44%

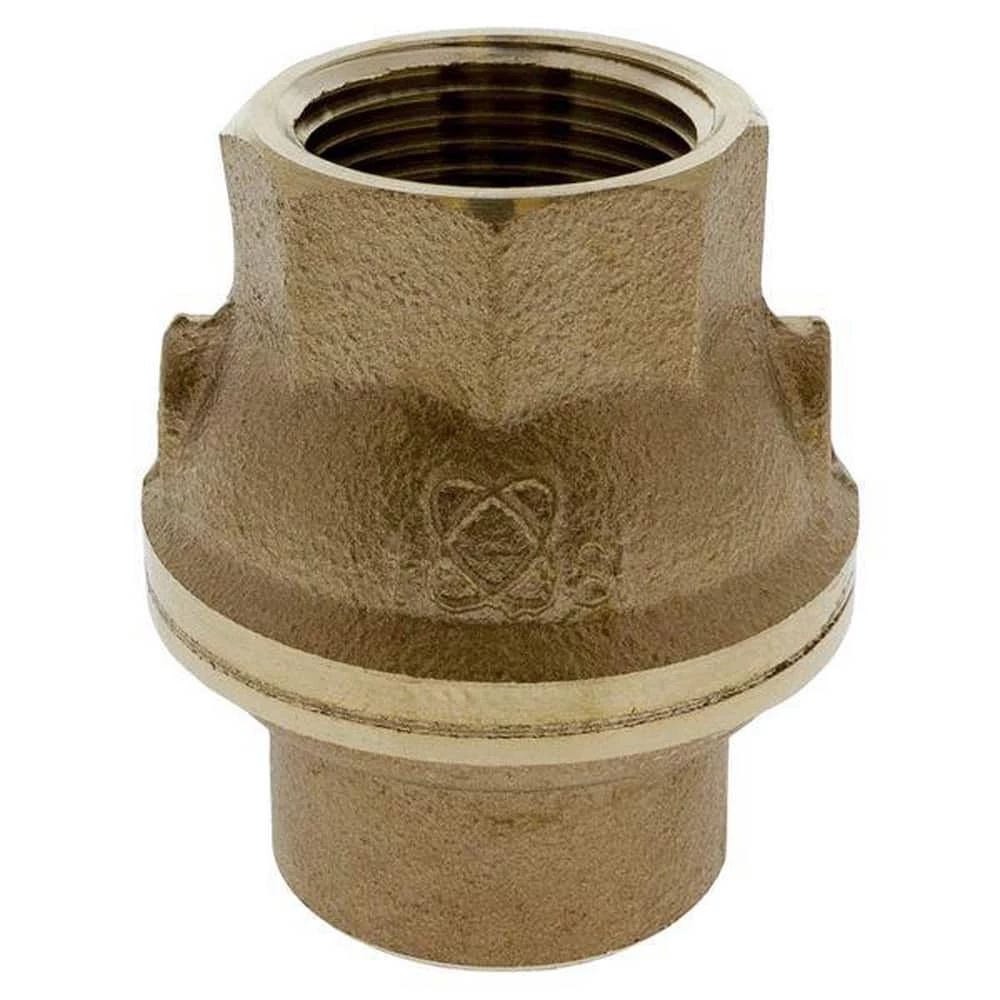

New 🛒 NIBCO T-480-Y-LF 1-1/4 in. Bronze FNPT Spring Check Valve 💯

Original price was: $169.95.Current price is: $95.99.

SKU: 3918483 Category: Check Valves Tag: Bronze

Green products, guaranteed.
The Quality Choice for Smart Shoppers
Effortless solutions, excellent customer care.
Where quality meets convenience.

Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure

Brass

FNPT thread

Spring actuated

250 PSI CWP

PTFE resilient seat disc

In-line lift-type

NSF-61-G approved

Class 125 threaded end connections

ANSI Specifications	ANSI 372, ANSI 61, ANSI 61-8, ANSI 61-8 Annex F, ANSI 61-8 Annex G
Maximum Temperature	300
Weight	1.14
Valve Type	Spring Check Valve
Valve Size	1-1/4 in
Valve Seat Material	PTFE
Valve Disc Material	PTFE
Valve Bonnet Type	Screw-in
Valve Body Style	Inline
UL Listed	No
Recommended Valve Application	Cold Working Pressure, Commercial, Residential
Pressure Class	250#
Origin	Domestic
NSF Specifications	NSF 372, NSF 61, NSF 61-8, NSF 61-8 Annex F, NSF 61-8 Annex G
NSF Certified	Yes
Material	Bronze
ASTM Specifications	ASTM A-582, ASTM B-584
MSS Specifications	MSS SP-139
Length	2-83/100 in
Lead Law Compliant	Yes
Installation Type	Horizontal, Vertical
IAPMO Listed	No
High Pressure	250
Height	2-9/25 in
FM Approved	No
End Connections	FNPT
End Connection 2	FNPT
End Connection 1	FNPT
Collection	T-480-Y-LF
Clean Bagged	No
Width	2-17/25 in
