Name: Cheapest 💯 NIBCO F-637-31 3 in. Ductile Iron Full Port Flanged Gate Valve 😀 | Bronze Valves sale shop
SKU: 1969763
Price: 91.99 USD
Availability: InStock

-81%

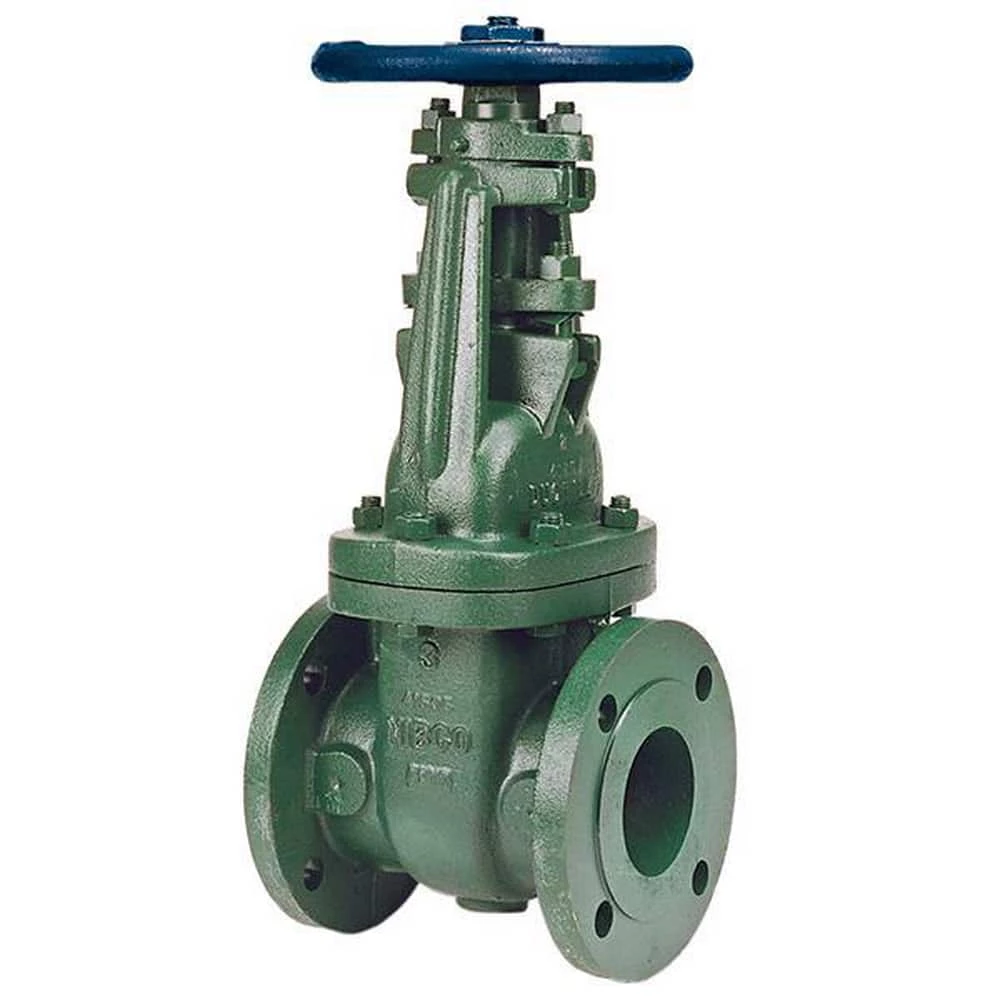

Cheapest 💯 NIBCO F-637-31 3 in. Ductile Iron Full Port Flanged Gate Valve 😀

Original price was: $495.00.Current price is: $91.99.

SKU: 1969763 Category: Gate Valves Tag: Bronze, Ductile Iron

Green products, guaranteed.
The Quality Choice for Smart Shoppers
Effortless solutions, excellent customer care.
Where quality meets convenience.

Provides full flow with minimal pressure drop

150 psi/10.3 bar saturated steam to 366°F/185°C

250 psi/17.2 bar non-shock cold working pressure

Outside screw and yoke

Iron body bronze mounted (IBBM)

Class 150 raised face flanged end connections

Use in U.S. drinking water applications is prohibited after January 3, 2014

Bolted bonnet

Line control valve

ASTM Specifications	ASTM A-126 Class B, ASTM A-395, ASTM B-584
Pressure Class	150#
Valve Type	Gate Valve
Valve Stem	Rising OS&Y
Valve Size	3 in
Valve Seat Material	Bronze
Valve Port Opening	Full Port
Valve Operator	Hand Wheel
Valve Disc Material	Ductile Iron
Valve Bonnet Type	Bolted
Valve Body Style	Flanged
Valve Body Material	Ductile Iron
UL Listed	No
Recommended Valve Application	Cold Working Pressure
NSF Certified	No
Collection	F-637-31
Maximum Temperature	366
Maximum Pressure	285 psi
Material	Bronze, Ductile Iron
MSS Specifications	MSS SP-128
Length	8 in
High Pressure	150, 250
Handle Material	Iron
Handle Length in	8 in
FM Approved	No
End Connections	Flanged
End Connection 2	Flanged
End Connection 1	Flanged
Weight	67
