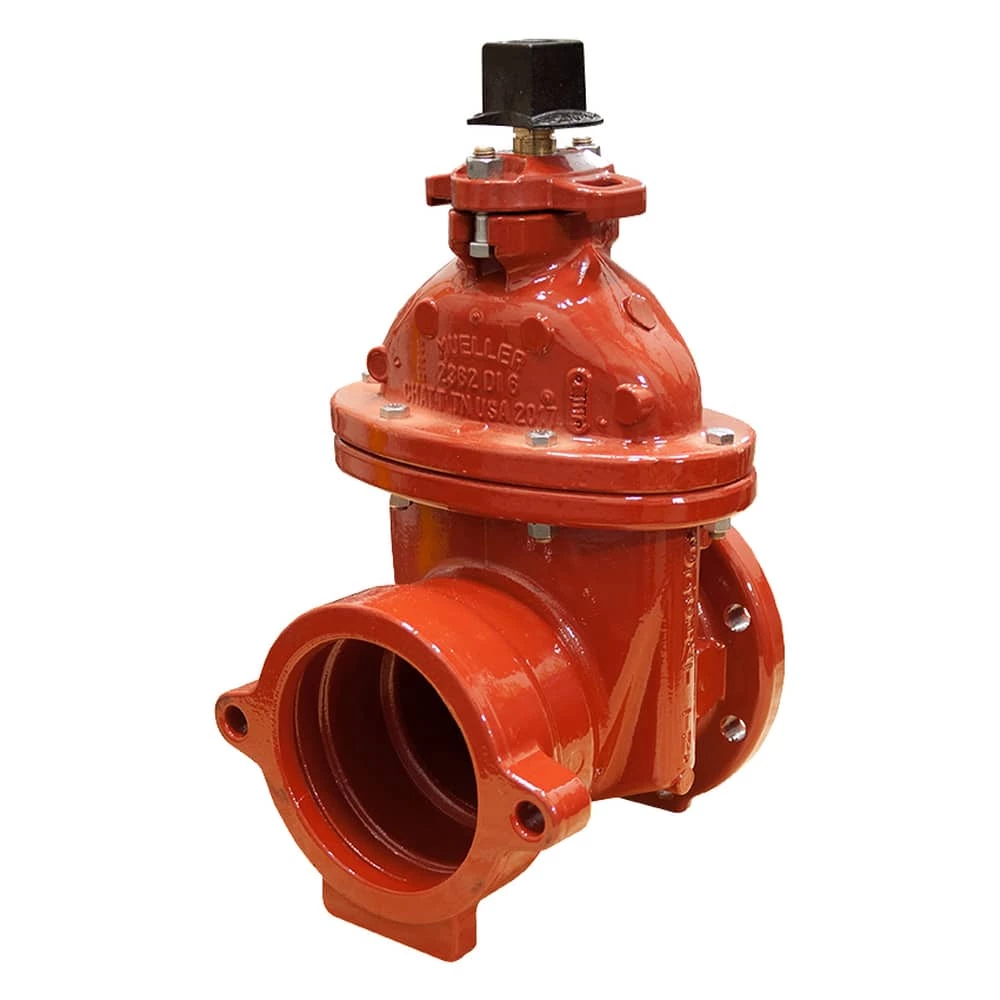

Best deal ✔️ Mueller Company A-2362 Series 4 in. Slip x Flanged Ductile Iron Open Left Resilient Wedge Gate Valve ✔️

Original price was: $189.84.Current price is: $96.99.

SKU: 4931650 Categories: AWWA Valves, Resilient Wedge Gate Valves Tag: Bronze, Ductile Iron, Plastic, Rubber, Stainless Steel

Green products, guaranteed.
The Quality Choice for Smart Shoppers
Effortless solutions, excellent customer care.
Where quality meets convenience.

Meets or exceeds all applicable requirements of ANSI/AWWA C509, UL 262 listed, FM 1120/1130 approved, and certified to ANSI/NSF 61 & 372

Slip-on ends fit plain end of classes 150, 200 and 250 cast iron; ductile iron and classes 150 and 200 cast iron O.D. PVC

Flanged end drilling complies with ASME/ANSI B16.1 class 125 and B16.42 class 150

Iron body with nominal 10 mils Pro-Gard® fusion bonded epoxy coated interior and exterior surfaces

Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard

Iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron; Non-rising stem (NRS)

Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)

2 in square wrench nut (optional handwheel available) – Open left or open right

350 psig (1725 kPa/17 brag) maximum working pressure, 700 psig (3450 kPa/35 brag) static test pressure

ANSI Specifications	ANSI 372, ANSI 61, ANSI B16.1 Class 125, ANSI B16.42 Class 150, ANSI B2.1 Class 125, ANSI C111, ANSI C509, ANSI C550
Maximum Pressure	700 psig
Waterworks Application	Potable Water
Valve Type	Resilient Wedge Gate Valve
Valve Stem	Non-rising
Valve Size	4 in
Valve Port Opening	Full Port
Valve Operator	2 in Square Nut
Valve Disc Material	Ductile Iron
Valve Body Style	Open Left
UL Listed	UL 262
Temperature Range	33 to 170 Deg F
Recommended Valve Application	Potable Water
NSF Specifications	NSF 372, NSF 61
NSF Certified	Yes
Material Type	316, Acetal, Nitrile
ASME Specifications	ASME B16.1 Class 125, ASME B16.42 Class 150
Material	Bronze, Ductile Iron, Plastic, Rubber, Stainless Steel
MSS Specifications	MSS SP-60
Length	10-91/100 in
ISO Specifications	ISO 9001
High Pressure	350
FM Approved	Yes
End Connections	Slip x Flanged
End Connection 2	Flanged
End Connection 1	Slip
Collection	A-2362 Series
Coating	Fusion Bonded Epoxy
Application	Potable Water
AWWA Specifications	AWWA C-111, AWWA C-509, AWWA C-550
ASTM Specifications	ASTM A-126 Class B, ASTM A-536, ASTM B-138, ASTM B-584, ASTM B-98, ASTM B-98 C66100/H02, ASTM D-2000, ASTM F-593, ASTM F-594
Weight	98
