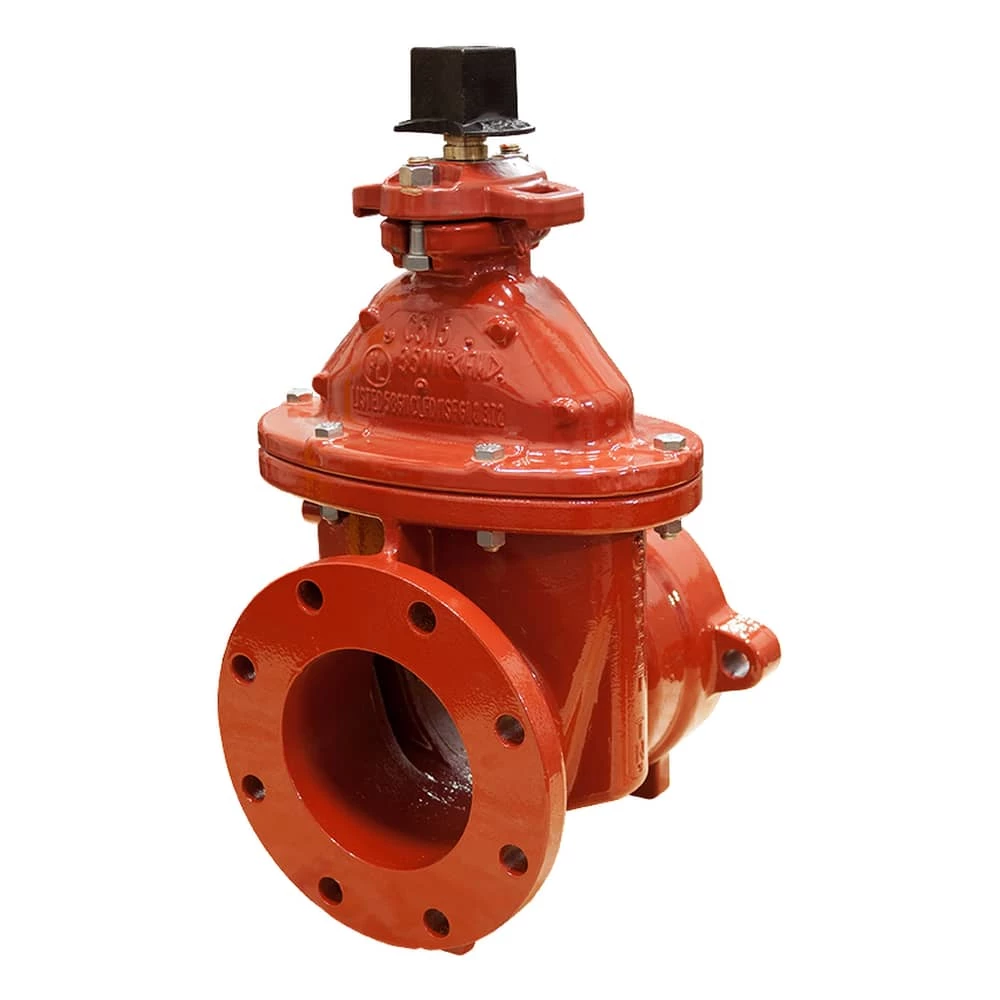

Best deal 🔔 Mueller Company A-2361 Series 6 in. Slip x Flanged Ductile Iron Open Left Resilient Wedge Gate Valve 😍

Original price was: $143.90.Current price is: $95.99.

SKU: 7046500 Categories: AWWA Valves, Resilient Wedge Gate Valves Tag: Bronze, Ductile Iron, Plastic, Rubber, Stainless Steel

Green products, guaranteed.
The Quality Choice for Smart Shoppers
Effortless solutions, excellent customer care.
Where quality meets convenience.

Meets or exceeds all applicable requirements of ANSI/AWWA C515 standard, UL 262 listed, FM 1120/1130 approved, and certified to ANSI/NSF 61 & 372

Slip-on ends fit plain end of classes 150, 200 and 250 cast iron; ductile iron and classes 150 and 200 cast iron O.D. PVC

Flange end drilling complies with ASME/ANSI B16.1 Class 125

Iron body with nominal 10 mils Pro-Gard® fusion bonded epoxy coated interior and exterior surfaces

Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard

Iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron

Non-rising stem (NRS)

Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)

2 in square wrench nut – open left or open right

350 psig (2400 kPa/24 brag) maximum working pressure 700 psig (4800 kPa/48 brag) static test pressure

ANSI Specifications	ANSI 372, ANSI 61, ANSI B16.1 Class 125, ANSI C515, ANSI C550
Maximum Pressure	700 psig
Valve Type	Resilient Wedge Gate Valve
Valve Stem	Non-rising
Valve Size	6 in
Valve Port Opening	Full Port
Valve Operator	2 in Square Nut
Valve Disc Material	Ductile Iron
Valve Body Style	Open Left
UL Listed	UL 262
Temperature Range	33 to 170 Deg F
Recommended Valve Application	Potable Water
NSF Specifications	NSF 372, NSF 61
NSF Certified	Yes
Material Type	316, Acetal, Nitrile
ASME Specifications	ASME B16.1 Class 125
Material	Bronze, Ductile Iron, Plastic, Rubber, Stainless Steel
Length	12-73/100 in
High Pressure	350
FM Approved	Yes
End Connections	Slip x Flanged
End Connection 2	Flanged
End Connection 1	Slip
Ductile Iron Pipe Type	Ductile Iron Slip Joint Pipe
Collection	A-2361 Series
Coating	Fusion Bonded Epoxy
Application	Potable Water
AWWA Specifications	AWWA C-515, AWWA C-550
ASTM Specifications	ASTM A-536, ASTM B-584, ASTM D-2000, ASTM F-593, ASTM F-594
Waterworks Application	Potable Water
