Name: Buy ✨ Mueller Company A-2361 Series 4 in. Slip Ductile Iron Open Left Resilient Wedge Gate Valve 👍 | Bronze Valves sale shop
SKU: 7053515
Price: 91.99 USD
Availability: InStock

-51%

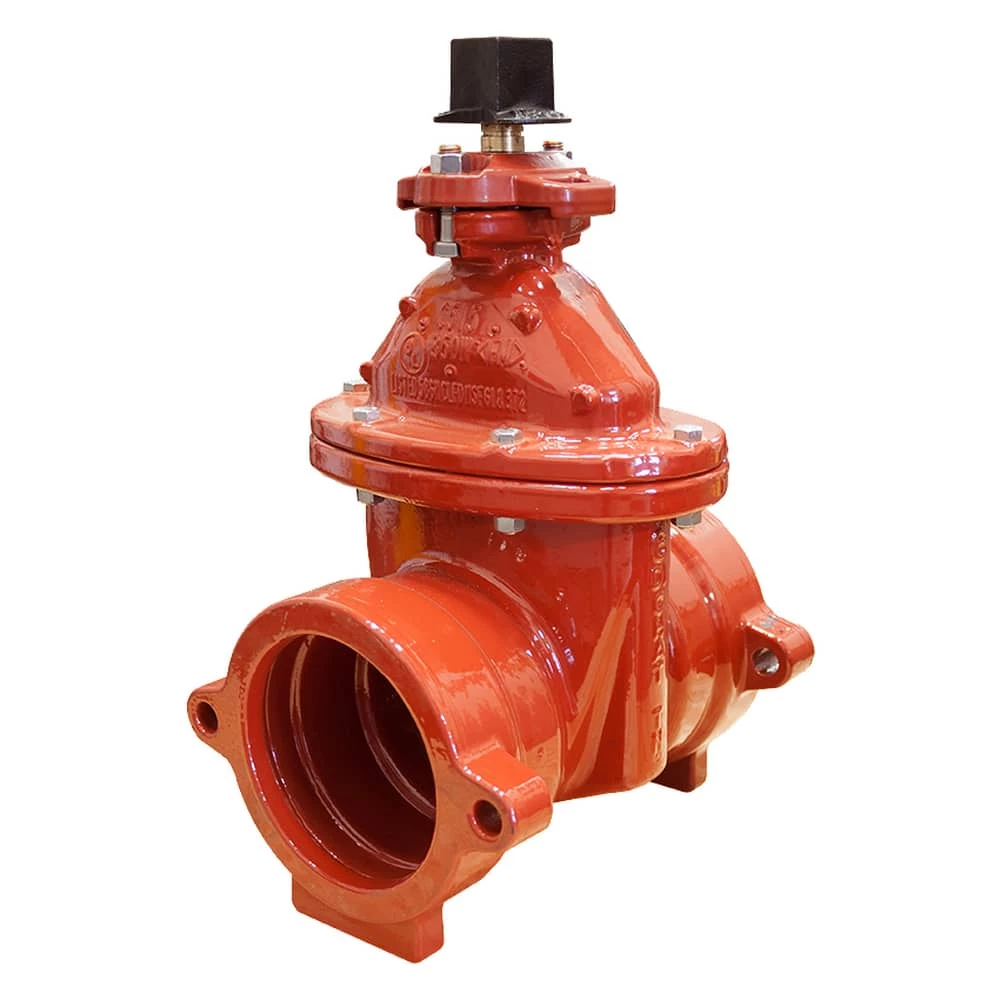

Buy ✨ Mueller Company A-2361 Series 4 in. Slip Ductile Iron Open Left Resilient Wedge Gate Valve 👍

Original price was: $189.22.Current price is: $91.99.

SKU: 7053515 Categories: AWWA Valves, Resilient Wedge Gate Valves Tag: Bronze, Ductile Iron, Plastic, Rubber, Stainless Steel

Green products, guaranteed.
The Quality Choice for Smart Shoppers
Effortless solutions, excellent customer care.
Where quality meets convenience.

Meets or exceeds all applicable requirements of ANSI/AWWA C515 standard, UL 262 listed, FM 1120/1130 approved, and certified to ANSI/NSF 61 & 372

Slip-on ends fit plain end of classes 150, 200 and 250 cast iron; ductile iron and classes 150 and 200 cast iron O.D. PVC

Iron body with nominal 10 mils Pro-Gard® fusion bonded epoxy coated interior and exterior surfaces

Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 standard

Iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron

Non-rising stem (NRS)

Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)

2 in square wrench nut – open left or open right

350 psig (2400 kPa/24 brag) maximum working pressure, 700 psig (4800 kPa/48 brag) static test pressure

Designed for potable water applications

ANSI Specifications	ANSI 372, ANSI 61, ANSI C515, ANSI C550
NSF Certified	Yes
Weight	93
Waterworks Application	Potable Water
Valve Type	Resilient Wedge Gate Valve
Valve Stem	Non-rising
Valve Size	4 in
Valve Port Opening	Full Port
Valve Operator	2 in Square Nut
Valve Disc Material	Ductile Iron
Valve Body Style	Open Left
UL Listed	UL 262
Temperature Range	33 to 170 Deg F
NSF Specifications	NSF 372, NSF 61
Maximum Pressure	700 psig
ASTM Specifications	ASTM A-536, ASTM B-584, ASTM D-2000, ASTM F-593, ASTM F-594
Material Type	316, Acetal, Nitrile
Material	Bronze, Ductile Iron, Plastic, Rubber, Stainless Steel
Length	12-81/100 in
High Pressure	350
FM Approved	Yes
End Connections	Slip
End Connection 2	Slip
End Connection 1	Slip
Ductile Iron Pipe Type	Ductile Iron Slip Joint Pipe
Collection	A-2361 Series
Coating	Fusion Bonded Epoxy
Application	Potable Water
AWWA Specifications	AWWA C-515, AWWA C-550
Width	10-79/100 in
