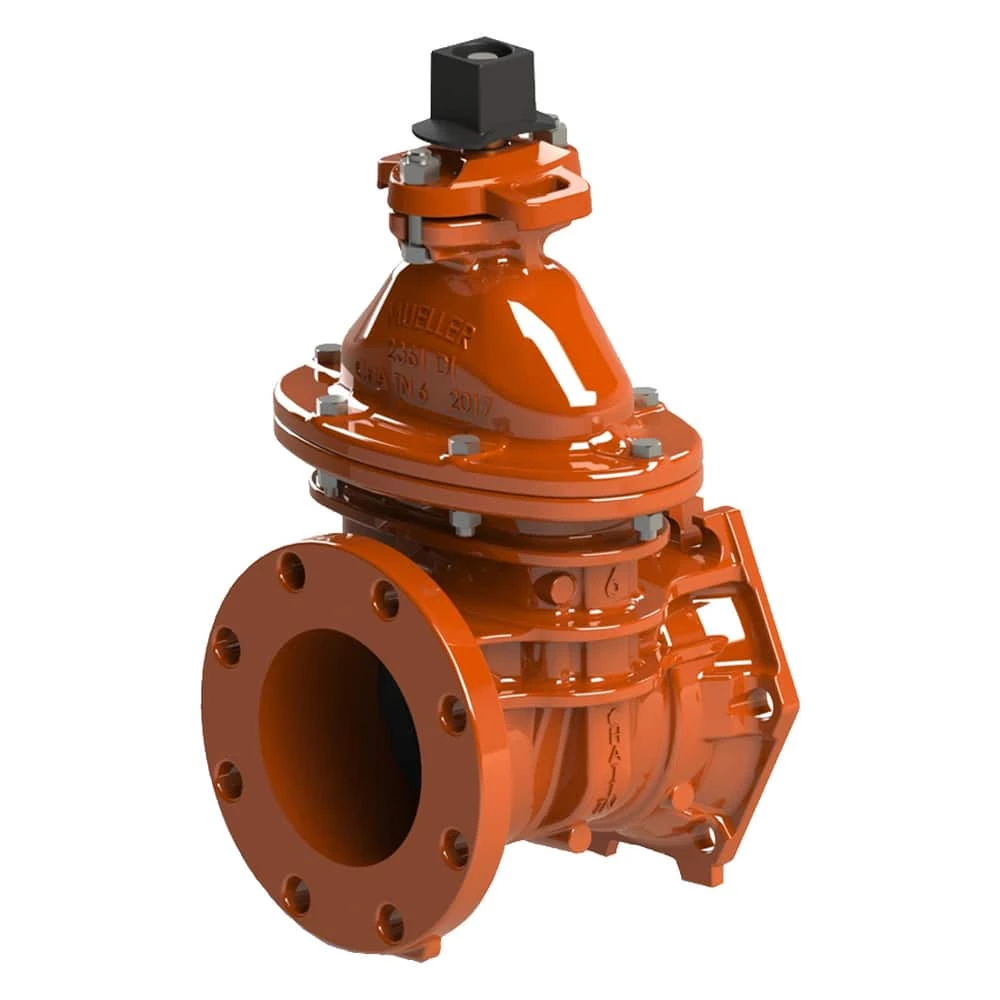

Outlet 😍 Mueller Company A-2361 Series 4 in. Mechanical Joint x Flanged Ductile Iron Open Left Resilient Wedge Gate Valve 😍

Original price was: $127.41.Current price is: $89.99.

SKU: 5154099 Categories: AWWA Valves, Resilient Wedge Gate Valves Tag: Bronze, Ductile Iron, Plastic, Rubber, Stainless Steel

Green products, guaranteed.
The Quality Choice for Smart Shoppers
Effortless solutions, excellent customer care.
Where quality meets convenience.

Non-rising stem (NRS)

2 in square operating nut (optional handwheel)

All ductile iron body and bonnet

Mueller Pro-Gard® fusion bonded epoxy coating – 10 mil (250 μ) nominal

Meets requirements of AWWA /ANSI C515 and is certified to ANSI/NSF 61 & 372

Antifriction washer above and below thrust collar

316 stainless steel, bonnet and stuffing box bolts and nuts

Ductile iron wedge, symmetrical and fully encapsulated with molded rubber; no exposed iron – acetal caps on guides ease operation and avoid wear

10-year limited warranty

Working pressure: 350 psig /24 brag; test pressure: 700 psig /48 brag

ANSI Specifications	ANSI 372, ANSI 61, ANSI B16.1 Class 125, ANSI C111, ANSI C515, ANSI C550
Maximum Pressure	700 psig
Weight	120
Waterworks Application	Potable Water
Valve Type	Resilient Wedge Gate Valve
Valve Stem	Non-rising
Valve Size	4 in
Valve Port Opening	Full Port
Valve Operator	2 in Square Nut
Valve Disc Material	Ductile Iron
Valve Body Style	Open Left
UL Listed	UL 262
Temperature Range	33 to 170 Deg F
Recommended Valve Application	Potable Water
NSF Specifications	NSF 372, NSF 61
NSF Certified	Yes
Material Type	316, Acetal, Nitrile
ASME Specifications	ASME B16.1 Class 125
Material	Bronze, Ductile Iron, Plastic, Rubber, Stainless Steel
Length	9 in
ISO Specifications	ISO 9001
High Pressure	350
FM Approved	Yes
End Connections	Mechanical Joint x Flanged
End Connection 2	Flanged
End Connection 1	Mechanical Joint
Ductile Iron Pipe Type	Ductile Iron Mechanical Joint Pipe
Collection	A-2361 Series
Coating	Fusion Bonded Epoxy
Application	Potable Water
AWWA Specifications	AWWA C-111, AWWA C-515, AWWA C-550
ASTM Specifications	ASTM A-536, ASTM B-138, ASTM B-584, ASTM D-2000, ASTM F-593, ASTM F-594
Width	10-79/100 in
