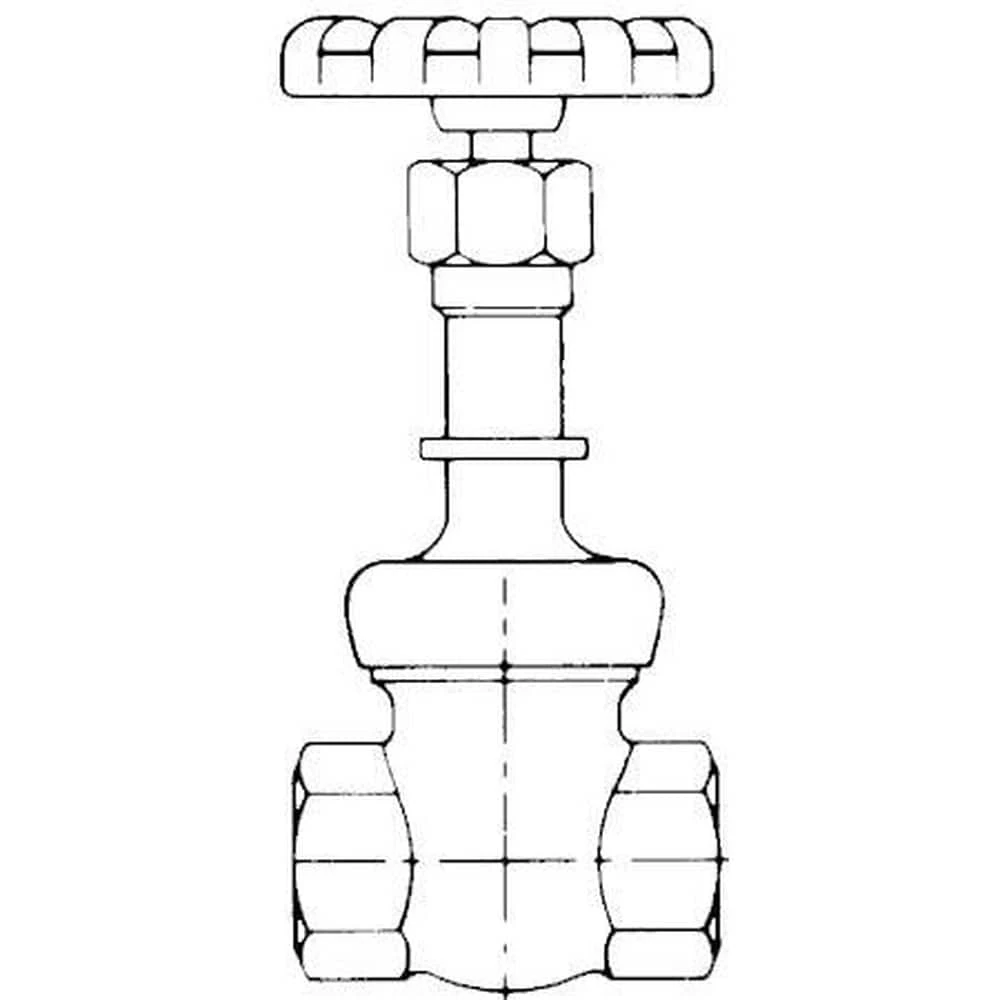

Wholesale 👏 Crane Valve/Crane Energy Flow Sol Figure 424 1-1/2 in. Bronze Full Port Threaded Gate Valve 🛒

Original price was: $394.05.Current price is: $96.99.

SKU: 109089 Category: Gate Valves Tag: Bronze, Cast Iron, Stainless Steel

Green products, guaranteed.
The Quality Choice for Smart Shoppers
Effortless solutions, excellent customer care.
Where quality meets convenience.

Union bonnet.

Solid wedge disc that slips onto strong head on the stem.

Inside screw.

For steam and nonshock water, oil, gas or volatile fluids.

Air tested.

Streamlined body, cylindrically designed to withstand high internal pressures and line strains.

Stainless steel seat rings which fit into body under hydraulic pressure, provide high resistance to wear, temperature, galling and scoring.

Easily replaceable disc absorbs normal seating wear.

Nonasbestos composition packing in bronze gland-equipped stuffing box.

Easy dismantle.

ASTM Specifications	ASTM A-109 C1144, ASTM A-276 Type 410, ASTM B-371 C69400, ASTM B-61 C92200
Pressure Class	200#
Valve Type	Gate Valve
Valve Stem	Rising
Valve Size	1-1/2 in
Valve Seat Material	Stainless Steel
Valve Port Opening	Full Port
Valve Operator	Handwheel
Valve Disc Material	Bronze
Valve Bonnet Type	Union
Valve Body Material	Bronze
UL Listed	No
Recommended Valve Application	Commercial, General Service, HVAC, Industrial, Marine, Plumbing
NSF Certified	No
Collection	Figure 424
Maximum Temperature	150
Material	Bronze, Cast Iron, Stainless Steel
MSS Specifications	MSS SP-80, Type 2
Length	3-69/100 in
Lead Law Compliance Level	Not Approved for Potable Water Applications
Height	10-7/25 in
Handle Material	Cast Iron
FM Approved	No
End Connections	Threaded
End Connection 2	Threaded
End Connection 1	Threaded
Weight	6.18
