Name: Outlet 👏 Crane Valve/Crane Energy Flow Sol 428 2 in. Bronze Threaded Gate Valve 🤩 | Bronze Valves sale shop
SKU: 86169
Price: 93.99 USD
Availability: InStock

-55%

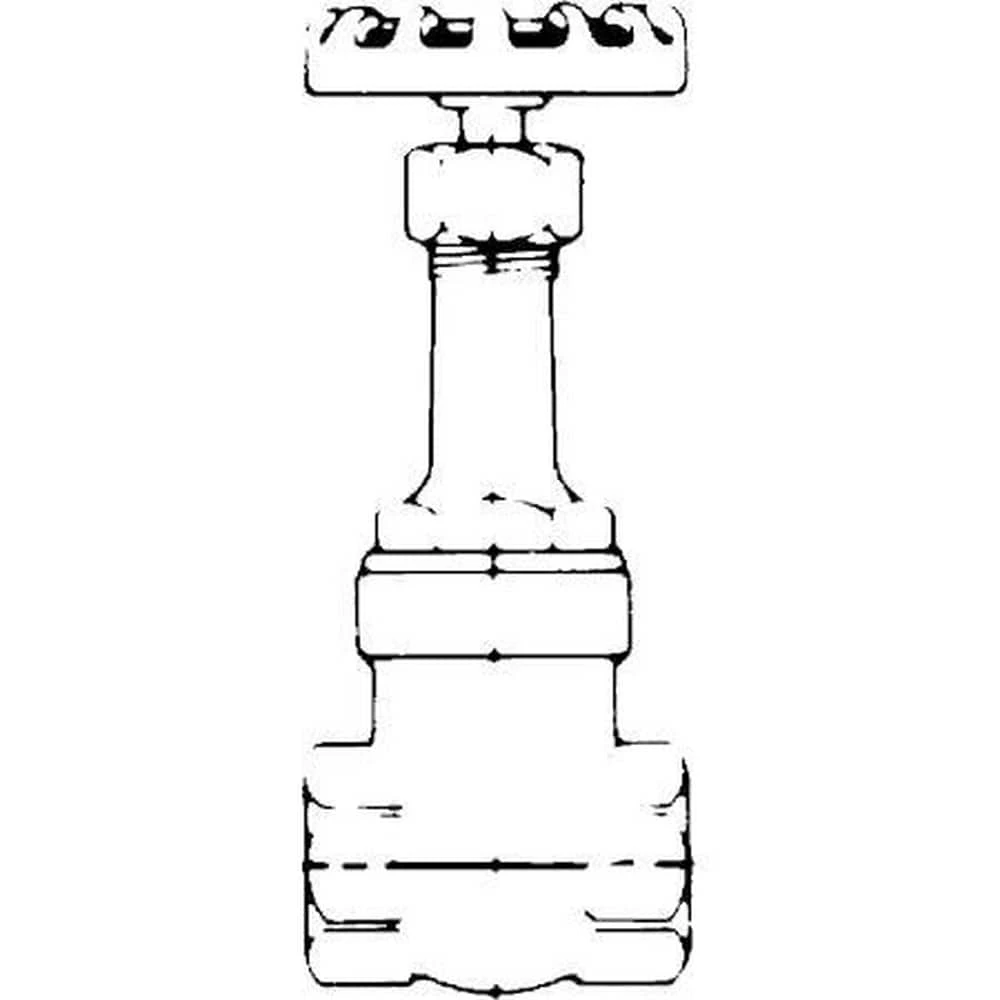

Outlet 👏 Crane Valve/Crane Energy Flow Sol 428 2 in. Bronze Threaded Gate Valve 🤩

Original price was: $209.48.Current price is: $93.99.

SKU: 86169 Category: Gate Valves Tag: Bronze, Malleable Iron

Green products, guaranteed.
The Quality Choice for Smart Shoppers
Effortless solutions, excellent customer care.
Where quality meets convenience.

Screwed bonnet.

Solid wedge disc.

For steam, non-shock water, oil or gas.

Cylindrically-shaped body.

Strong and lightweight.

Straight-through flow with full diameter seat openings.

Nonasbestos composition packing filled in deep stuffing box provides tight stem seal.

Class 125.

Meet material and design requirements of Fed. Spec.

WW-V-54d, Class A, Type II valves.

ANSI Specifications	ANSI B1.20.1
Maximum Temperature	150
Valve Type	Gate Valve
Valve Stem	Rising
Valve Size	2 in
Valve Operator	Handwheel
Valve Disc Material	Bronze
Valve Bonnet Type	Threaded
Valve Body Material	Bronze
Recommended Valve Application	Commercial, General Service, HVAC, Industrial, Marine
Pressure Class	125#
Material	Bronze, Malleable Iron
ASTM Specifications	ASTM A-197 F22000, ASTM B-62 C83600
MSS Specifications	MSS SP-80, Type 2
Length	3-1/4 in
High Pressure	200
Height	11-17/20 in
Handle Material	Malleable Iron
End Connections	Threaded
End Connection 2	Threaded
End Connection 1	Threaded
Collection	428
Weight	7
