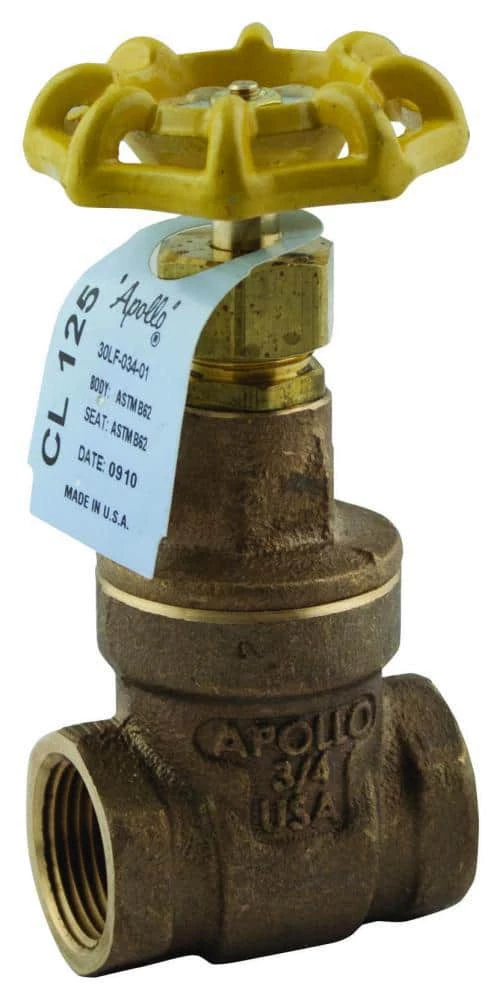

Top 10 👏 Apollo Valves 30LF Series 1-1/2 in. Bronze Full Port NPT Gate Valve 🎉

Original price was: $263.07.Current price is: $94.99.

SKU: 4161902 Category: Gate Valves Tag: Bronze

Green products, guaranteed.
The Quality Choice for Smart Shoppers
Effortless solutions, excellent customer care.
Where quality meets convenience.

The Lead-Free apollo model 102T-LF (30LF series) gate valve provides a Made in USA alternative to globally sourced multi-turn valves

Guided solid bronze disc wedge

Adjustable graphite stem packing

100% factory tested

Back seat protection

Saturated steam 125 psi

Lead-Free

Made in USA

ANSI Specifications	ANSI 372, ANSI 61-8
Temperature Rating	406
Maximum Temperature	406
NSF Certified	Yes
NSF Specifications	NSF 372, NSF 61
Number of Handles	Single Handle
Origin	Domestic
Pressure Class	125#
Recommended Valve Application	Water
Temperature Range	-20 to 406 Deg F
UL Listed	No
Material	Bronze
Valve Body Material	Bronze
Valve Body Style	Threaded
Valve Bonnet Type	Screw-in
Valve Disc Material	Bronze
Valve Operator	Wheel Handle
Valve Port Opening	Full Port
Valve Size	1-1/2 in
Valve Stem	Non-rising
Valve Type	Gate Valve
Material Type	B584-C89836
MSS Specifications	MSS SP-139, MSS SP-80
ASME Specifications	ASME B1.20.1
End Connection 2	NPT
ASTM Specifications	ASTM B-584
Adjustable	No
Application	Chilled Water, Hot Water, Hydronic Heating, Potable Water, Steam
BAA Compliant	Yes
CSA Certified	CSA B51 CRN 0C14667.5
Clean Bagged	No
Collection	30LF Series
End Connection 1	NPT
End Connections	NPT
Length	2-22/25 in
FM Approved	No
Fire Suppression System Rated	No
Flow Rate	119 gpm
Handle Material	Malleable Iron
Height	6-1/50 in
High Pressure	200
IAPMO Listed	No
ISO Specifications	No
Lead Law Compliant	Yes
Weight	3.95
